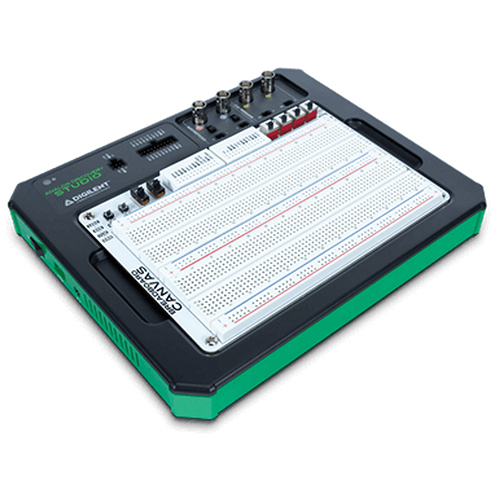

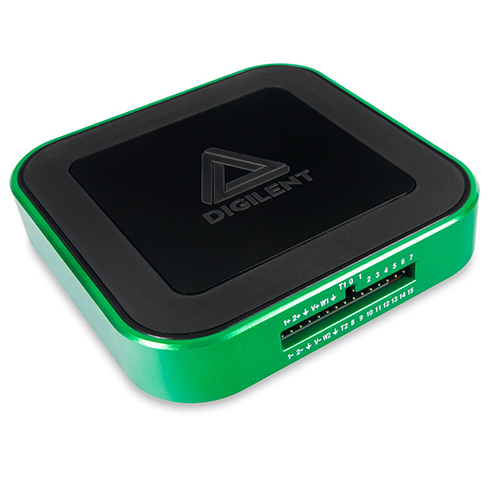

Analog Discovery Studio

About Analog Discovery Studio

Analog Inputs:

• Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data Logger
• Two analog input channels, accessible through BNC or MTE connectors
• Channel type: differential (with MTE) or single-ended (with BNC)
• Analog bandwidth with BNC cables: 30+ MHz @ 3dB
• Analog bandwidth with MTE flywires: 9 MHz @ 3dB
• Input range ±25 V (±50 V diff)
• Input protected to ±50 V
• 14-bit resolution
• Operate at 100 MS/s



Power Supplies:

• 12 volt supply: 12V ±5%; 0.2 Amps max
• -12 volt supply: -12V ±5%, 0.2 Amps max
• 5 volt supply: 5.0 V ±5%; 1.0 Amps max
• 3.3 volt supply: 3.3 V ±5%; 1.0 Amps max
• V+ and V- rails: 0.5 V to 5 V (V+), and -0.5 V to -5 V (V-)
• Maximum power output: 2.1W for each supply
• Maximum current output: 700mA for each supply.



Note: Remove the protective foam from underneath the Breadboard Canvas before using the power supplies

Analog Outputs:

• Used in the Waveform Generator and Network Analyzer
• Two arbitrary waveform generator channels, accessible through BNC or MTE connectors
• AC amplitude (max): ±5 V
• Analog bandwidth (BNC or MTE connectors: 8 MHz @ 3dB)
• Operate at 100 MS/s



Product Compliance:

• HTC: 8471809000
• ECCN: EAR99



Digital Inputs and Outputs:

• Used in the Logic Analyzer, Pattern Generator, Protocol Analyzer, and Digital I/O
• Channels: 16
• Input logic standard: LVCMOS (1.8/3.3 V, 5 V tolerant)
• Output logic standard: LVCMOS (3.3 V, 12 mA)





Versatile Functionality

Analog Discovery Studio serves as an all-in-one solution for electronics labs. Incorporating instruments such as an oscilloscope, network and spectrum analyzer, voltmeter, impedance analyzer, and data logger, it supports a broad range of circuit testing and analysis tasks, enhancing the learning and project development experience for users in academic and professional environments.


Robust Power Supply and Easy Integration

Powered by an AC supply, the Analog Discovery Studio ensures stable performance for continuous operations. Its compatibility with modern test benches and seamless integration into various laboratory setups make it a dependable choice for educators and electronics professionals throughout India.
